Dogtrace GPS X25 tracking device, orange color

Product description

Dogtrace GPS X25 Orange location kit. A remote and collar system for tracking a dog's position while working in the field. This reference identifies the series and set functions; choose the appropriate collar size from the available versions.

Features and operation

• New X25 Range
• Available in two sizes (standard and SHORT)
• Standard collar: Ideal for dogs with a neck circumference of 30 cm or more.
• SHORT collar: Ideal for dogs with a neck circumference of 26 cm or more. The flexible electronic section is shorter (9 cm compared to the 13 cm of the standard GPS X20 collar), allowing the strap to be adjusted for smaller dogs.
• Improved version of the X20:
• Supports up to 19 dogs. The X20 supports 9.
• Has 4 collar versions: locator, locator + training, locator + beeper, locator + training + beeper. The X20 only has locator collars.
• Two frequency channels to switch in case of interference. The X20 only has one fixed channel.
• Three different internal tones for close-range location and training (dog recall). The X20 does not have acoustic tones.
• The X25 range is compatible with X20 collars, so an X25 remote can be used with 19 X20 collars.
• X25 collars can be paired with X30 remotes, but only the location function can be used. The beeper and training functions do not work with the X30 remote.
• Locates from 1 to 19 dogs.
• Maximum range 20 km.
• Two frequency channels to switch in case of interference.
• Three different internal tones for close-range location and training (dog recall).
• Direct location screen for each dog using an arrow showing the direction and exact distance.
• COMPASS function: The screen always shows true north to keep you oriented at all times.
• WAYPOINT function: Allows you to save points of interest, car location, hunting areas, etc. Each saved point occupies a channel (like a collar). Maximum 3 points of interest.
• BEEPING DOG (BECADA) function: Alerts you if a dog is on point. When a dog is on point, the receiver remote beeps or vibrates.
• WILD BOAR function: Activated when a dog moves in a circle in the same area.
• FENCE function: Allows you to set a circular safety perimeter relative to the remote (maximum 2 km). If the dog exceeds this distance, the remote beeps to alert you.
• CAR function: Allows the remote to be used inside a vehicle.
• The communication interval between each collar and the receiver remote can be adjusted. You can choose to have them communicate every 3, 6, or 9 seconds. This function is very useful for optimizing performance for both woodcock and tracking dogs.
• Remote and collars are submersible.
• The collar can be easily paired with multiple remotes simultaneously.
• 3-hour recharge time for both collars and receiver remote.
• Charging connectors on the collar and remote have no caps or slots that could cause problems with mud.
• Collar battery life: 40 to 50 hours.
• Receiver remote battery life: 40 hours.
• Collars with interchangeable straps, allowing for color identification.

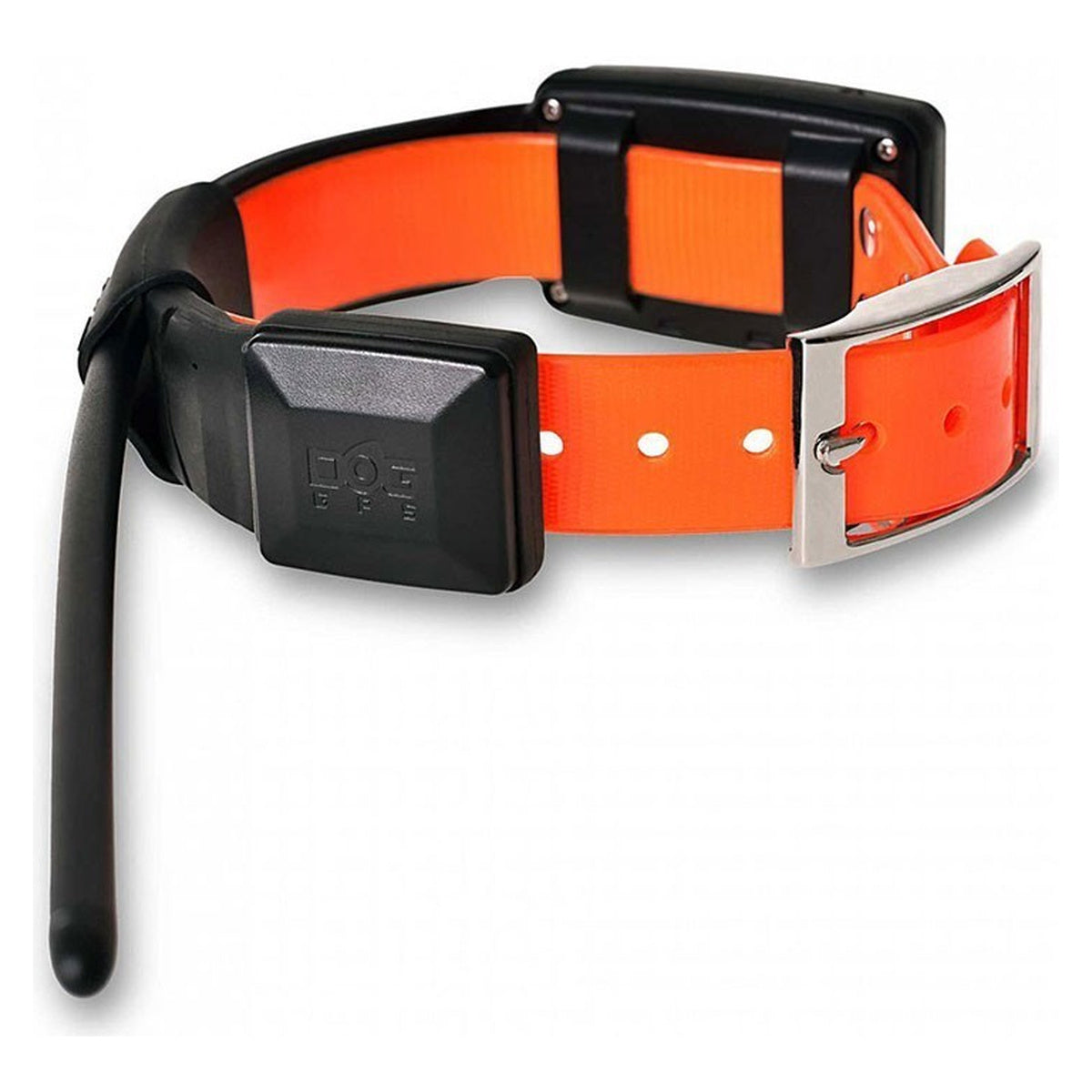

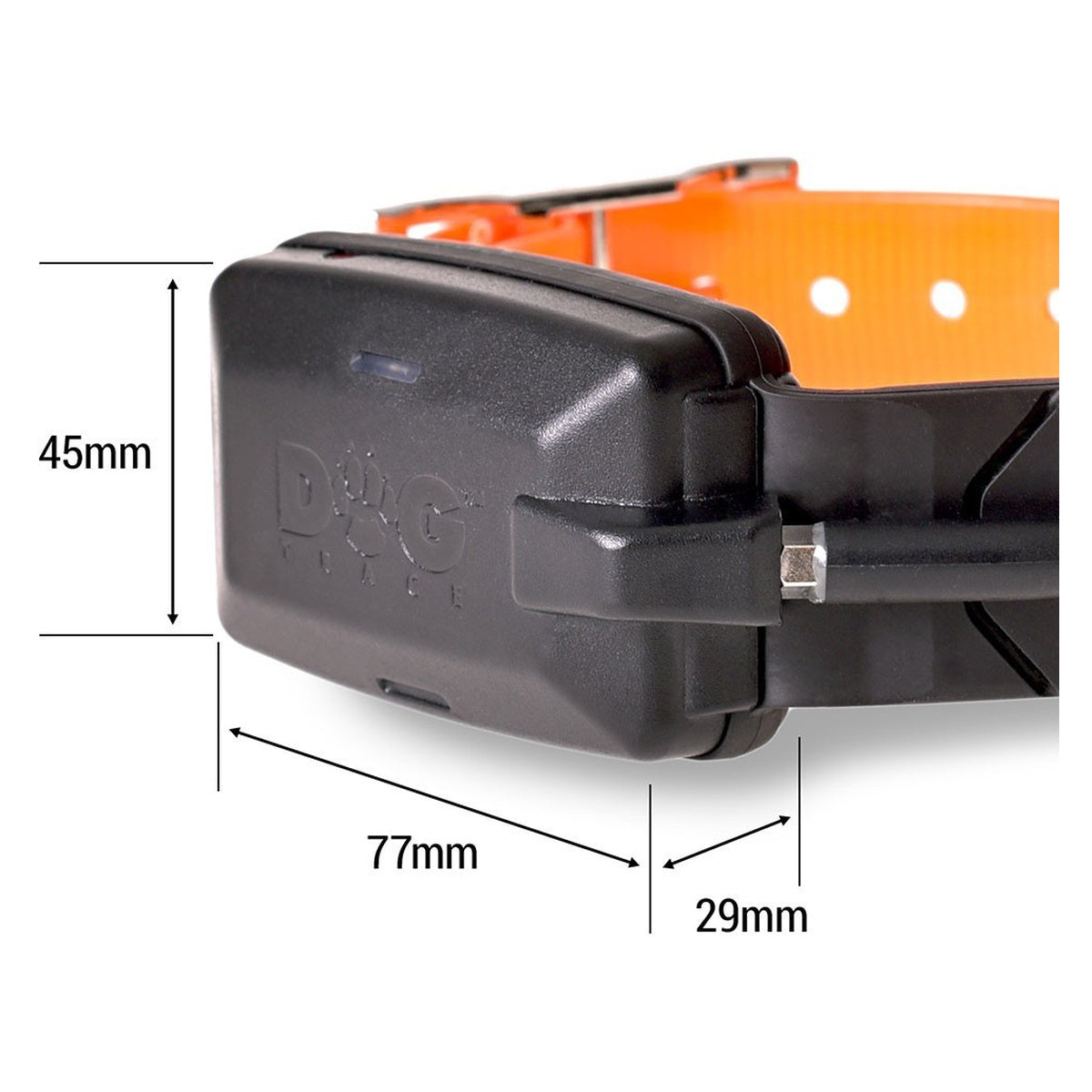

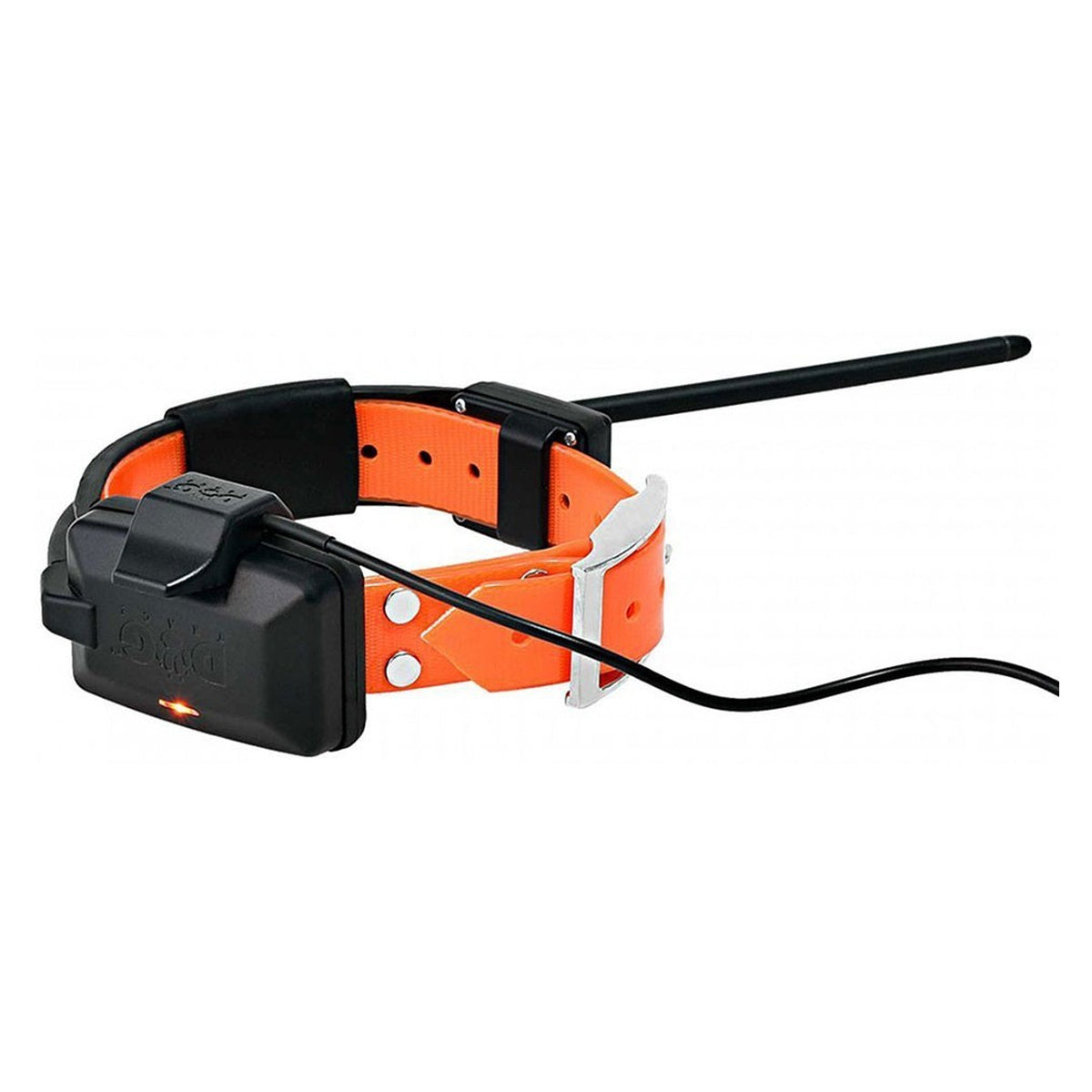

• Transmitter collar. Dimensions: 77 x 45 x 29 mm. Weight: 142 g (without strap). 30 cm flexible antenna.

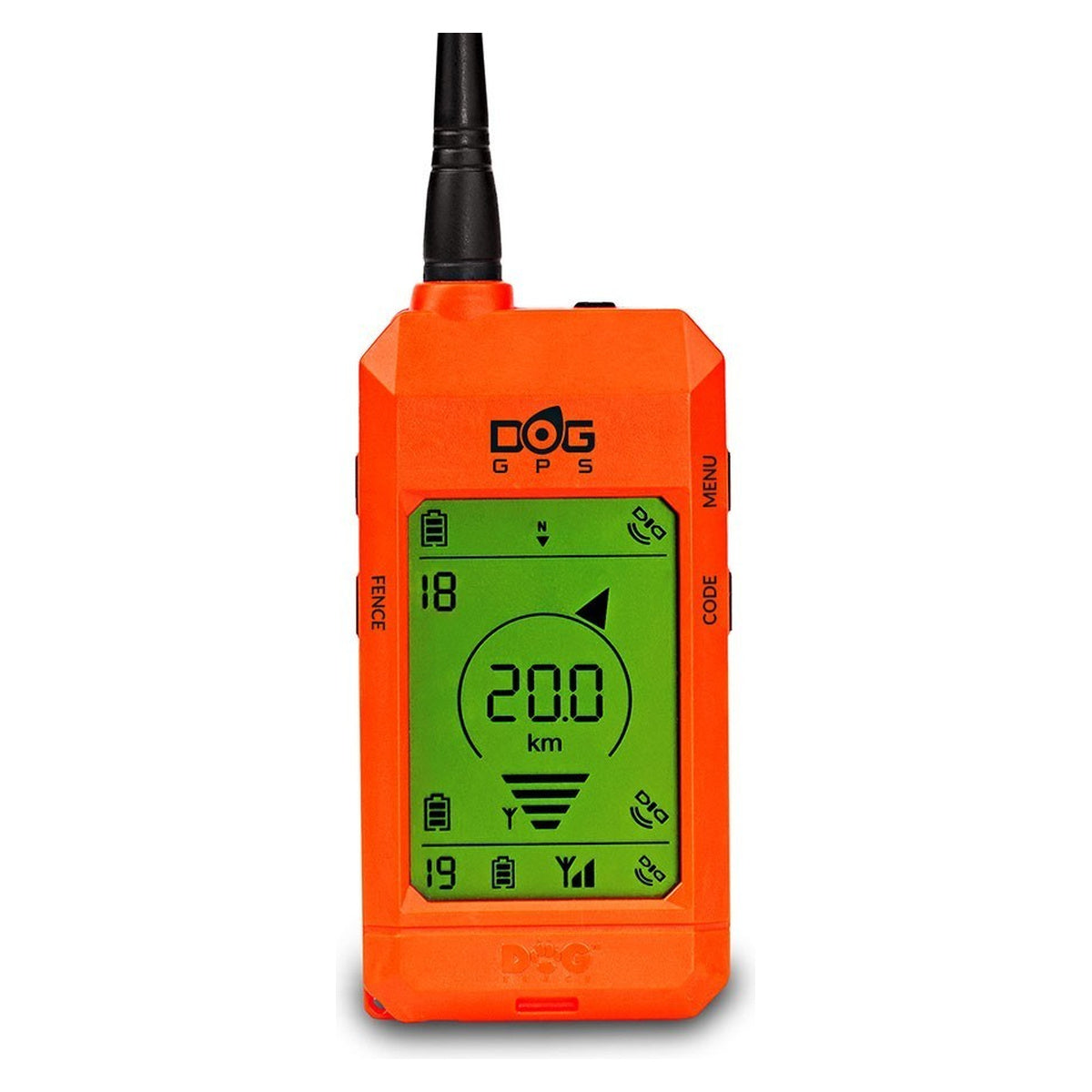

• Receiver remote. Dimensions: 119 x 62 x 15 mm. Weight: 192 g. 22 cm flexible antenna.

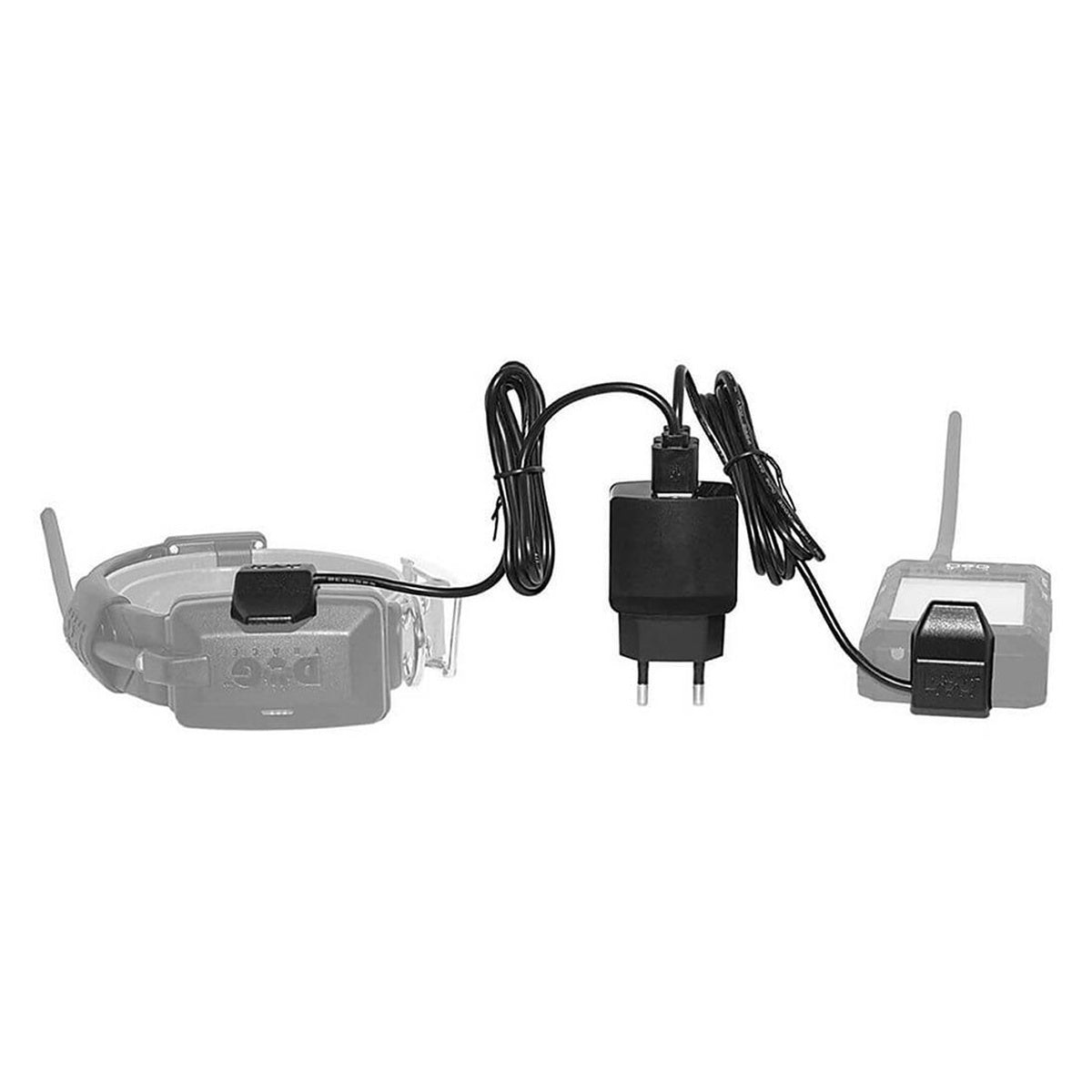

• The complete kit includes a remote with belt clip, collar, USB charging cable, lanyard for the remote, and a protective nylon case for the collar.

Technical specifications

Versions and references

The selector identifies the chosen configuration. Check the dimensions and compatibility before choosing.
