Dogtrace GPS X30-B dog tracking device, orange

Product description

Dogtrace GPS X30-B orange locator kit. A remote and collar unit to track the dog's position while working in the field. This reference identifies the series and set functions; choose the appropriate collar size from the available versions.

Features and operation

• Dogtrace X30-B GPS locator kit for dogs. With an external horn for long-distance localization audible up to 300 meters.
• Available in two sizes (standard and SHORT)
• Standard collar: Ideal for dogs with a neck circumference from 30 cm.
• SHORT collar: Ideal for dogs with a neck circumference from 26 cm. The flexible section of the electronics is shorter (9 cm compared to the 13 cm of the standard X20 GPS collar), allowing for strap adjustment on smaller dogs.
• In addition to the common functions of the X20 GPS, the X30-B model offers more options. It can be used only with the remote receiver, via mobile phone (with maps), or both at the same time.
• Features (identical to the X20 model):
• Maximum range 20 km.

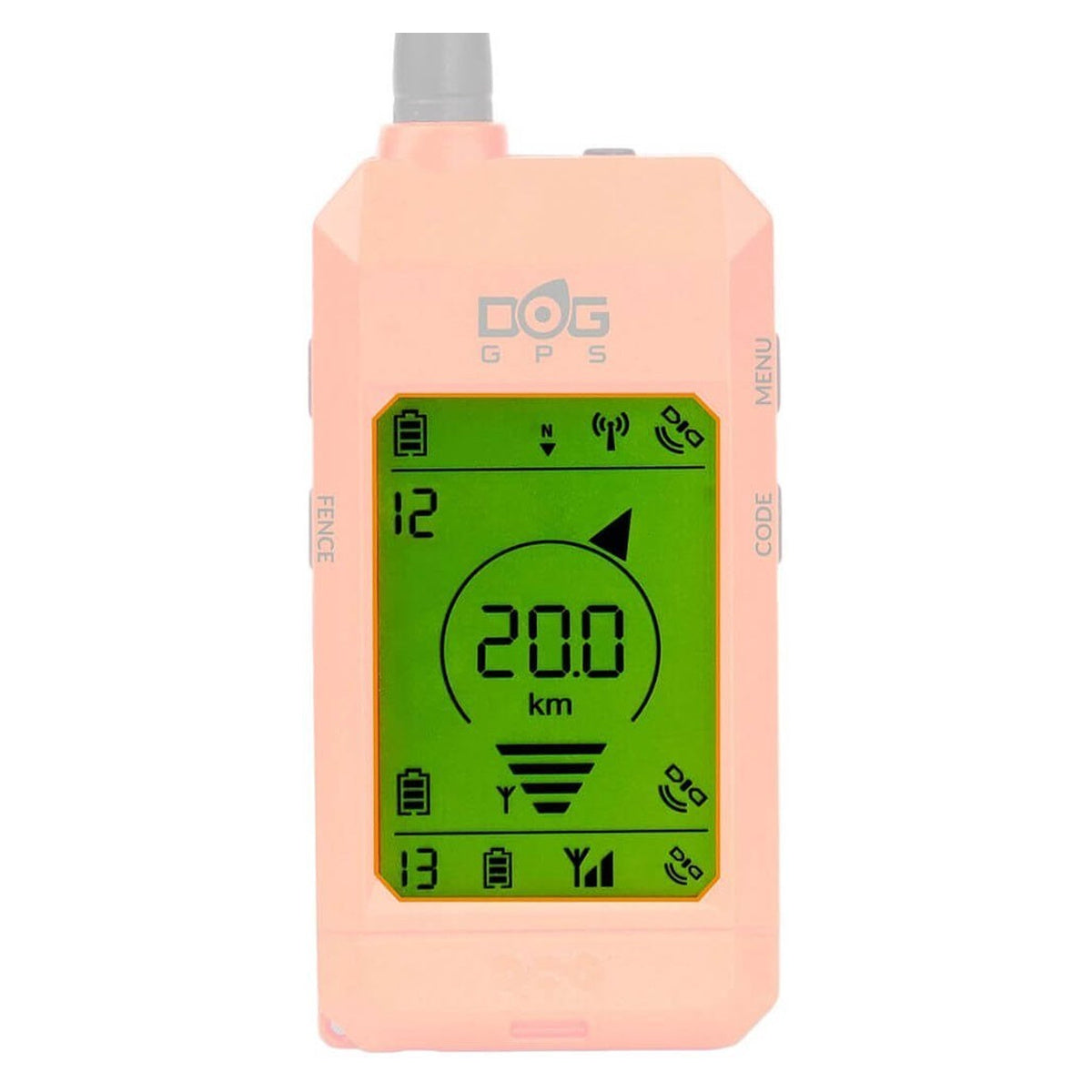

• Direct localization screen for each dog using an arrow showing the direction and exact distance at which it is located.
• COMPASS function: The screen always shows true north so that you are well-oriented at all times.
• WAYPOINT function: Allows memorizing points of interest, car location, hunting areas, etc. Each saved point occupies a collar memory slot.
• BEEP (BECADA) function: Alerts us if a dog is on point. When a dog is on point, the remote receiver beeps or vibrates.
• WILD BOAR function: Activated when a dog moves in circles within the same area.
• FENCE function: Allows us to mark a circular safety perimeter relative to the remote (maximum 2 km). If the dog exceeds this distance, the remote beeps to alert us.
• CAR function: Allows the use of the remote inside the car.
• The communication interval between each collar and the remote receiver can be adjusted. We can choose for them to communicate every 3, 6, or 9 seconds. This function is very interesting so that the equipment offers the best performance for both pointing dogs and tracking dogs.
• Submersible remote and collars.
• Ideal for dogs with a neck circumference from 30 cm.
• The collar can be easily paired with several remotes at the same time.
• Recharge time for collars and the remote receiver is 3 hours.

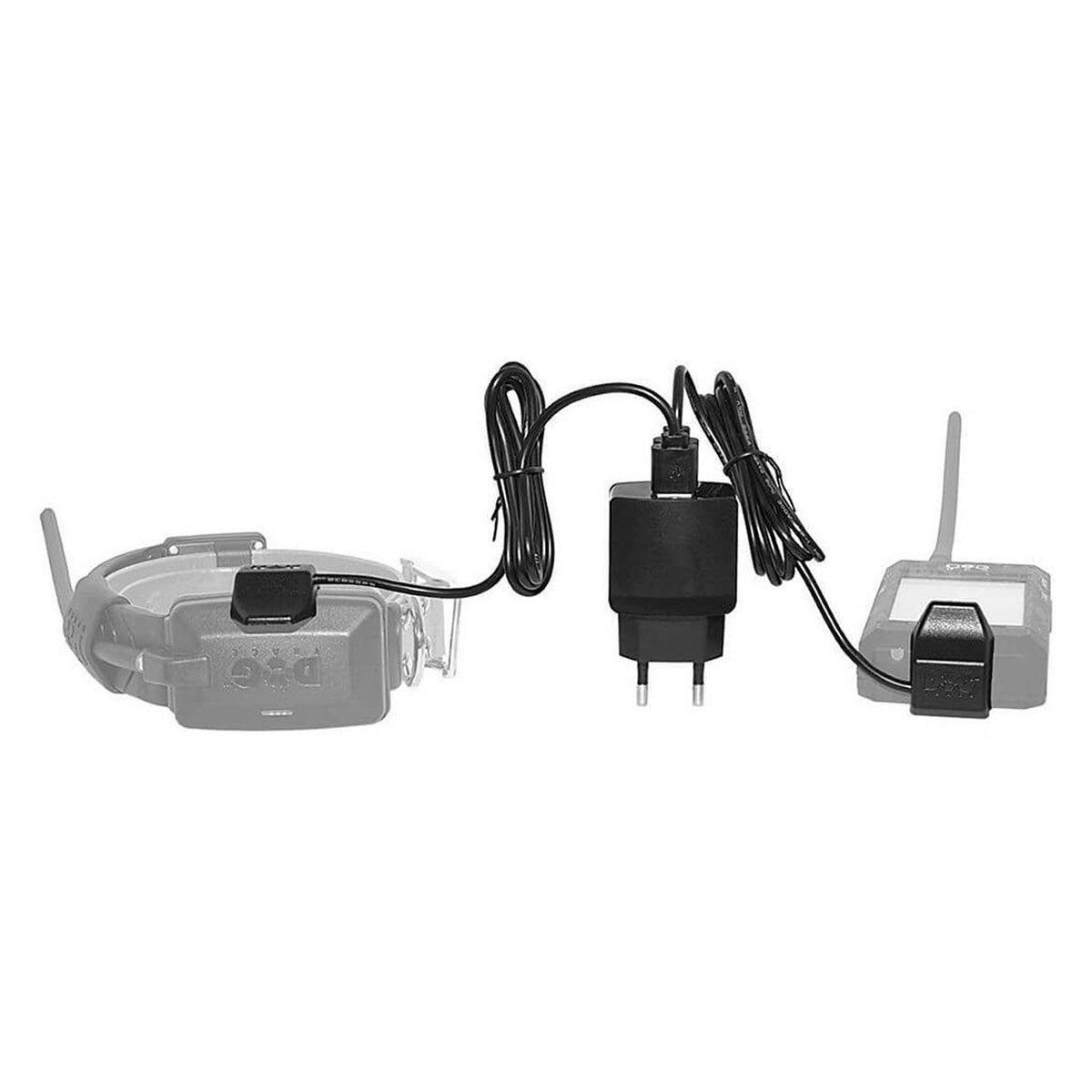

• Charging connectors on the collar and remote without plugs or slots that could cause problems with mud.
• Collar battery life from 40 to 50 hours
• Remote receiver battery life 40 hours
• Collars with interchangeable straps that allow them to be identified by color.

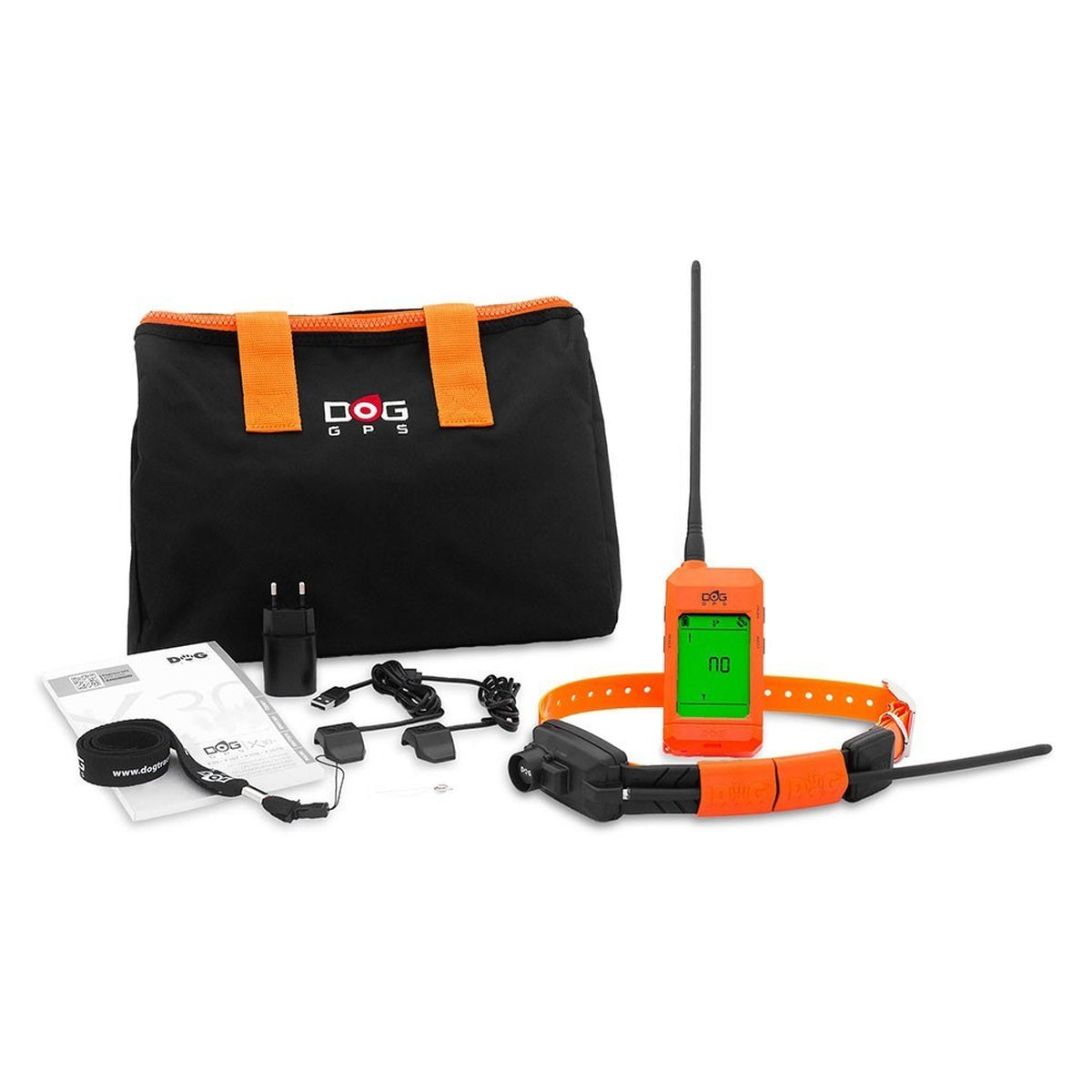

• The complete kit consists of a remote, collar, USB charging cable, nylon protective case for the collar, and a “Dogtrace” carrying bag.
• Additional X30-B features:
• Locates from 1 to 13 dogs.
• Pairing the remote to a smartphone via Bluetooth for use with the “Dogtrace GPS” App **
• Pairing the remote to a smartwatch via Bluetooth for use with the “Dogtrace GPS” App ***
• Internal acoustic tone for close-range localization of the collar, audible at about 20 meters. Incorporated into all X30 collar models. Control from the remote or mobile App.
• Acoustic tone for recall: Allows a soft internal tone from the remote or mobile App to call the dog. Incorporated into all X30 collar models.
• EXTERNAL HORN: (Available only on X30-B and X30-TB models). Allows long-distance localization. Audible up to 300 meters. Control from the remote or mobile App.
• Tuning the remote receiver with another user's remote (as if it were another collar) to monitor a companion's position.
• Possibility of changing frequency for potential interference.

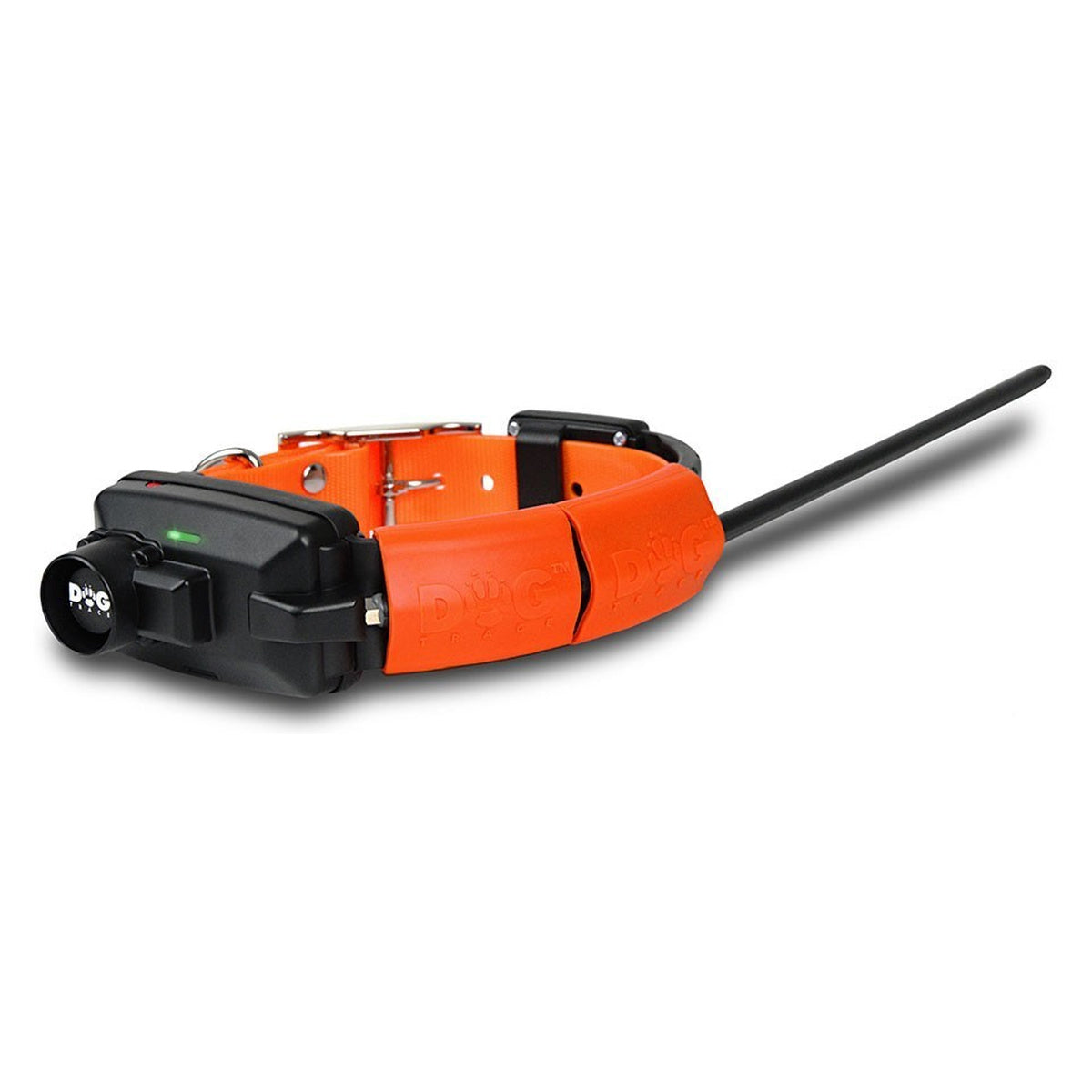

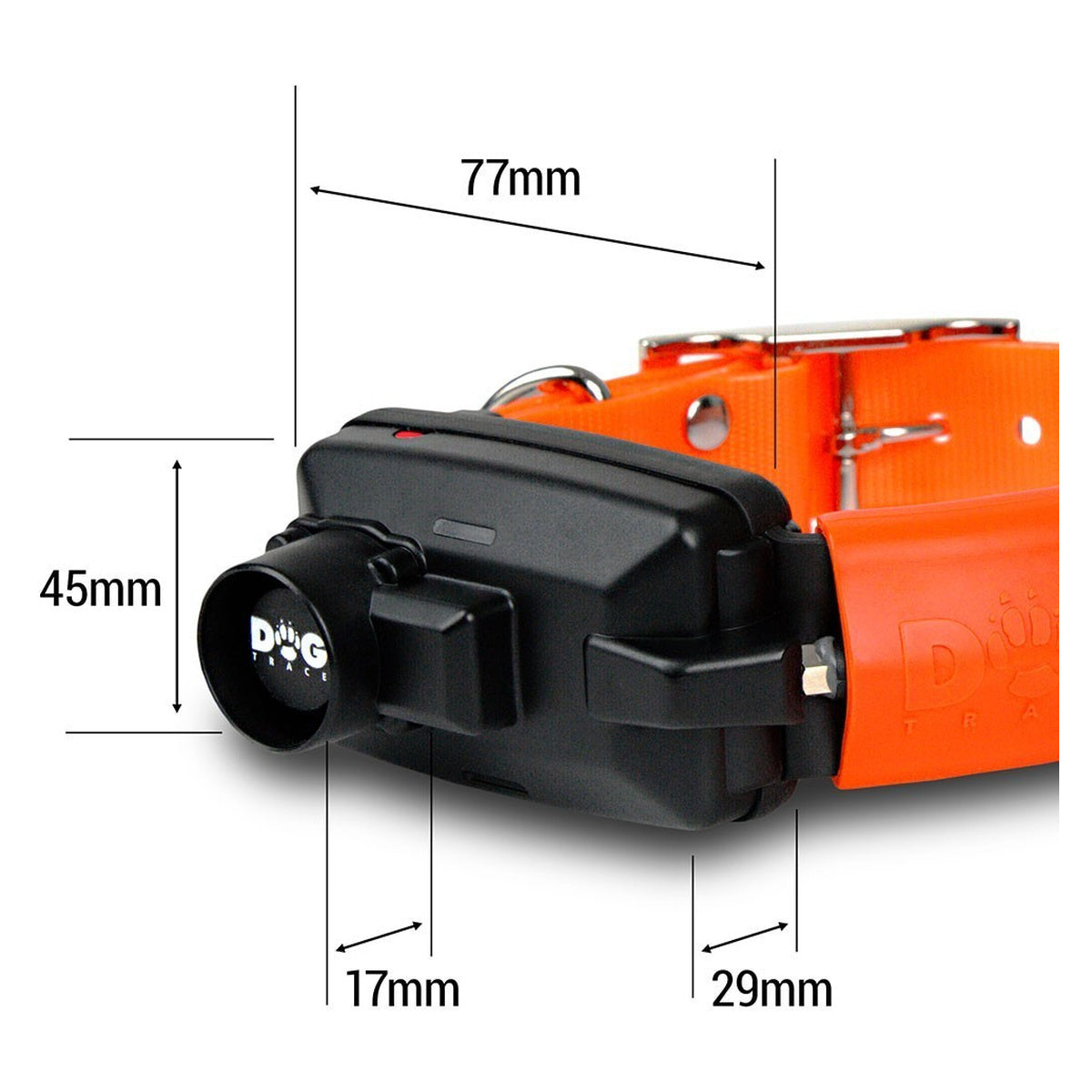

• Transmitter collar. Electronics box dimensions: 77 x 45 x 46 mm. - Weight: 142 g (without strap). 30 cm flexible antenna.

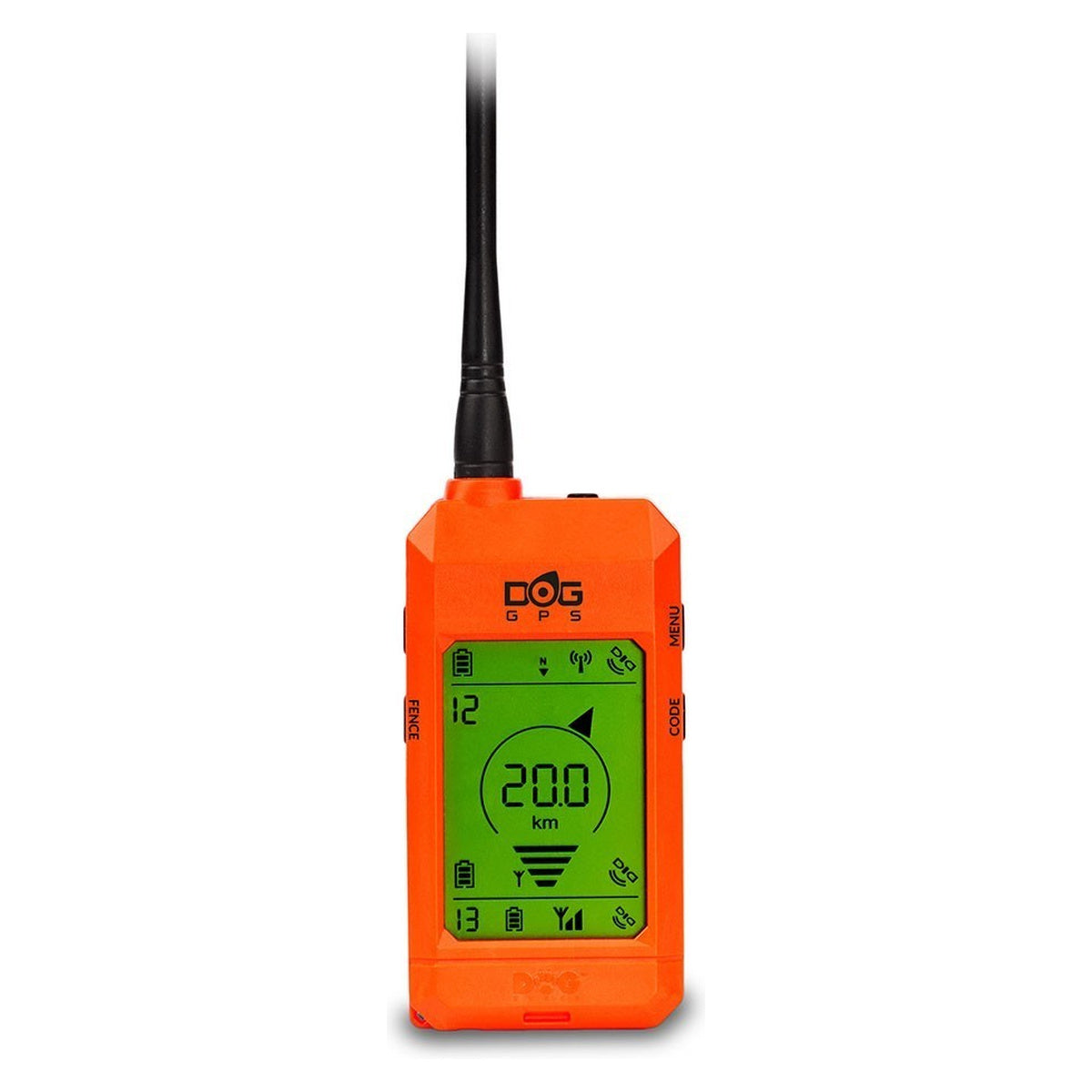

• Remote receiver. Dimensions: 119 x 62 x 15 mm. - Weight: 192 g. 22 cm flexible antenna.
• Additional functions when using the mobile App:

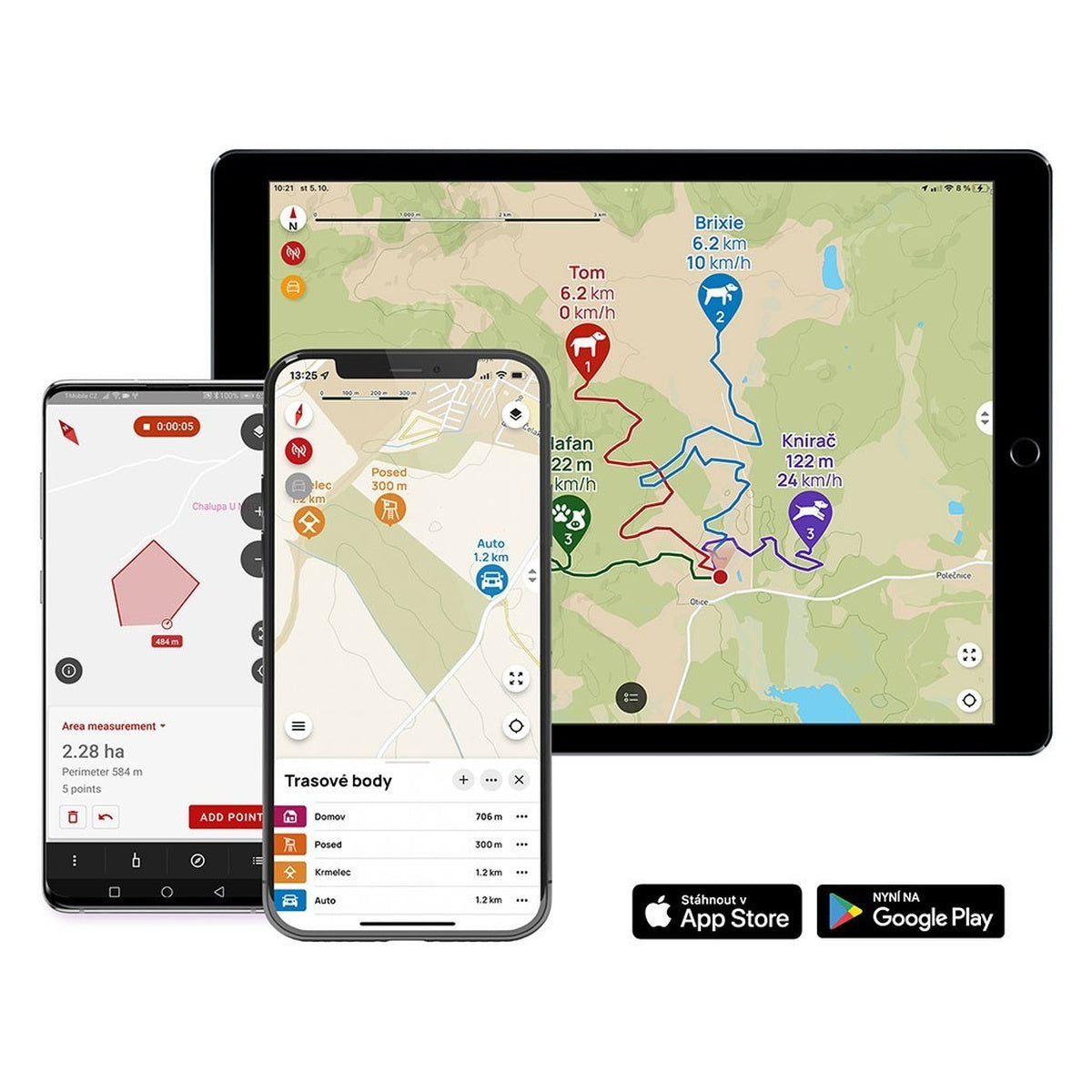

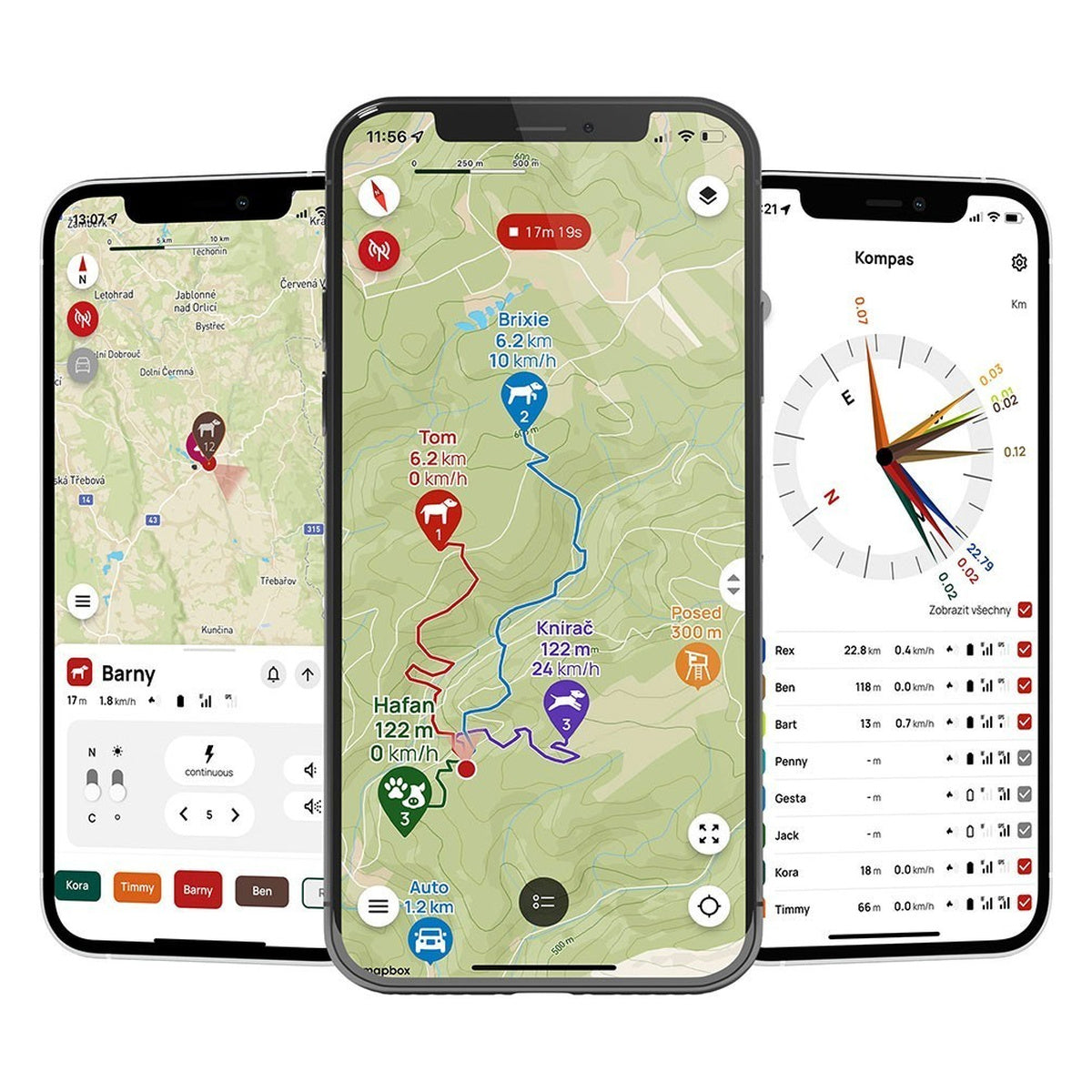

• MAPS: Shows the position of the dogs on the map. We can choose between basic map view or satellite view.

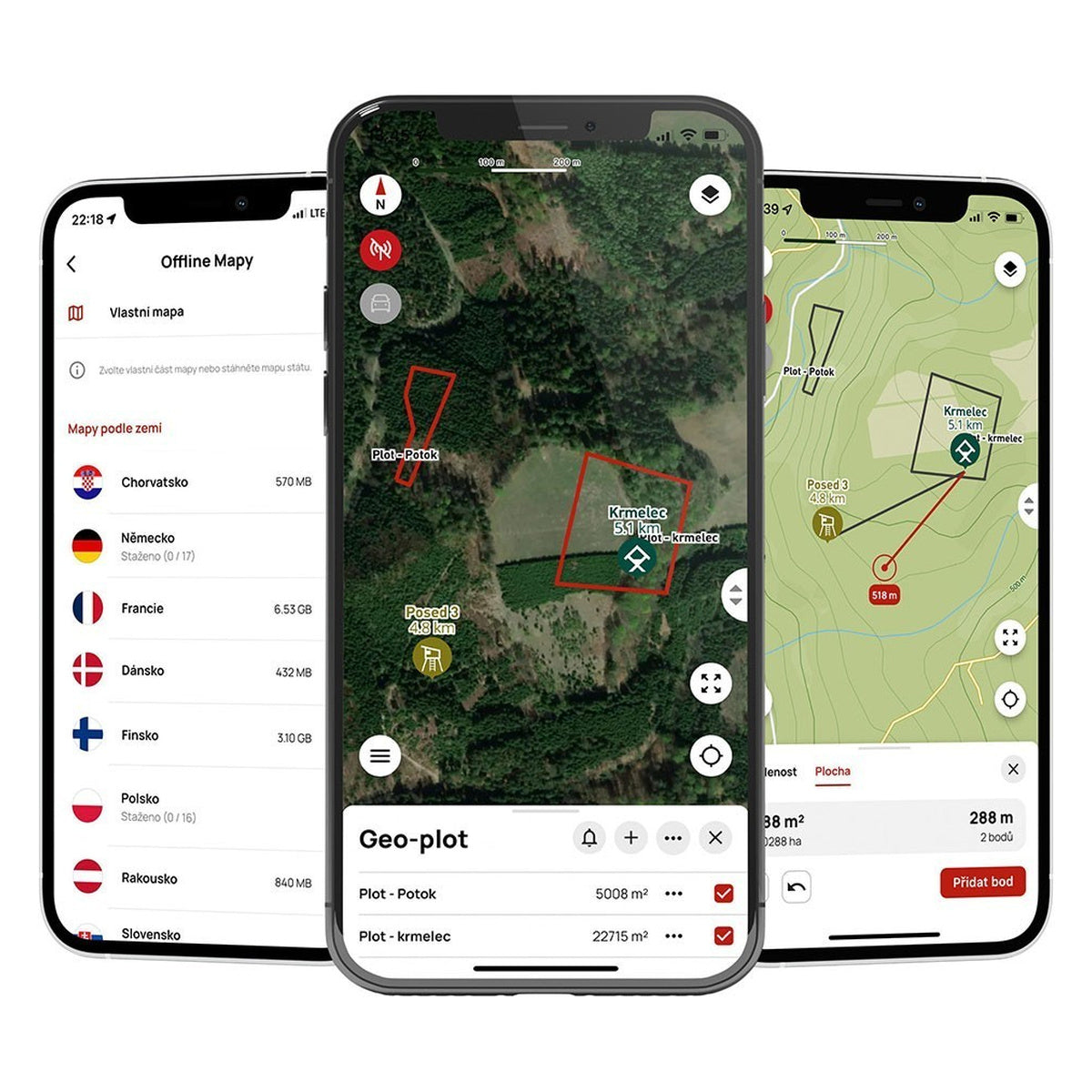

• We can download maps (basic view maps) to use the App in areas without mobile coverage. Fast and easy download from the App itself.
• It also allows downloading any other type of map that we prefer or that fits our area or activity better (from a computer) and subsequently loading it into the mobile App (MBTiles format).
• TRACK: Records and saves the route of all collars.
• TRAINING: Configuration of the level and activation of impulses. We can manage the training function both from the remote and from the mobile App. Only on X30-T / X30-TB collars
• LIGHT: Activation of the signaling light. Only on X30-T / X30-TB collars
• BARK DETECTION: The App shows us through an icon if the dog is barking. Additionally, the time and place of the barking are recorded in track mode.
• FENCE function: Allows marking a circular or custom perimeter. By using the App, we can mark an irregular area, whereas with the remote, the Fence function only allows us to mark a circular perimeter.
• WAYPOINT function. Allows recording as many points as we want. Does not occupy collar memory slots. These saved points can only be viewed from the mobile App and not from the remote.
• * "Smartphone" from the main photo not included in the pack.
• ** APP valid for ANDROID 5.0 or higher smartphones and for Apple iPhone
• *** This app is downloaded and installed from the watch itself and is paired with the mobile phone. Compatible models: AppleWatch (paired to iPhone) and SmartWatch with WEAR OS operating system (paired to mobile with Android operating system)

Technical sheet

Versions and references

The selector identifies the chosen configuration. Check its dimensions and compatibility before choosing.
